Questions 16 – 20 are based on the passage and diagram below.

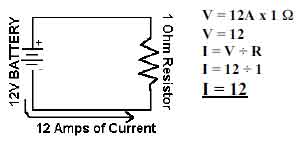

If the voltage of the battery was known, and there was a resistive load of 1 Ohm placed in the series, the current would be

Or, if the voltage and the current are known, then it is possible to calculate the amount of resistance in the circuit.

R = V ÷ I
R = 12 ÷ 12
R = 1 O

  1. Ohm’s father likely had
    • university degree
    • some university training
    • very little formal education
    • more than 10 years of formateducation

  2. A 110 volt wall outlet supplies power to a strobe light with a resistance of 2200 ohms. How much current is flowing through the strobe light?

    volt diagram

    • 0.5 amps
    • 2.0 amps
    • 0.05 amps
    • 1.0 amp



  1. Which of the following statements is not true?
    • Voltage is inversely proportional to the value of resistance
    • Voltage is directly proportional to current
    • Current is inversely proportional to resistance
    • Voltage and Resistance are always equal

  2. Which of the following is not a variable n the equation described in this passage?
    • voltage
    • watts
    • resistance
    • amperes

  3. Which of the following equations would you use to calculate the amount of resistance in a simple circuit?
    • V = I x R
    • I = V ÷ R
    • R = V x I
    • R = V ÷ I

assessment continues on the next page
